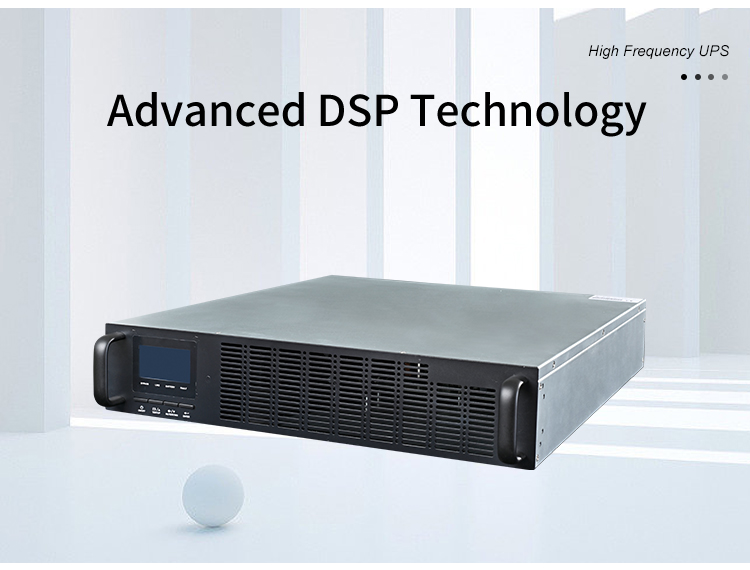

High Frequency Rack Mounted UPS Power Online Three Phase UPS WTHD Supplies

Introducing, the High Frequency Rack Mounted UPS Power Online Three Phase UPS by WTHD, a cutting-edge solution for ensuring uninterrupted power supply to critical electronics in your organization. This innovative UPS system is designed to provide reliable backup power in case of a power outage or fluctuation, protecting your valuable equipment from damage and downtime.

The High Frequency Rack Mounted UPS from WTHD is a powerhouse of features that make it a top choice for businesses looking to safeguard their operations. With its advanced technology and high efficiency, this UPS system delivers consistent and clean power to your devices, ensuring optimal performance and longevity. The online double-conversion design of this UPS unit guarantees seamless power transfer in the event of a blackout, without any interruption to your critical systems.

This three-phase UPS system from WTHD is built to handle a wide range of loads, making it versatile and adaptable to your organization's unique needs. Whether you have a small office or a large data center, this UPS system can be configured to meet the demands of your equipment and ensure continuous operation. Its rack-mounted design saves valuable space in your facility, allowing you to optimize your layout and maximize efficiency.

One of the standout features of the High Frequency Rack Mounted UPS by WTHD is its low total harmonic distortion (THD) rating, which ensures that your sensitive electronics receive clean and stable power at all times. This reduces the risk of damage and malfunctions caused by power fluctuations, keeping your equipment running smoothly and reliably. With its high-frequency technology, this UPS system is also more energy-efficient, saving you money on electricity bills in the long run.

The High Frequency Rack Mounted UPS Power Online Three Phase UPS by WTHD is a top-of-the-line solution for businesses seeking a dependable and efficient power backup system. With its advanced technology, space-saving design, and low THD rating, this UPS system offers unparalleled performance and peace of mind. Invest in the WTHD UPS system today and safeguard your critical electronics from power disruptions

Product Description

Feature：

Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

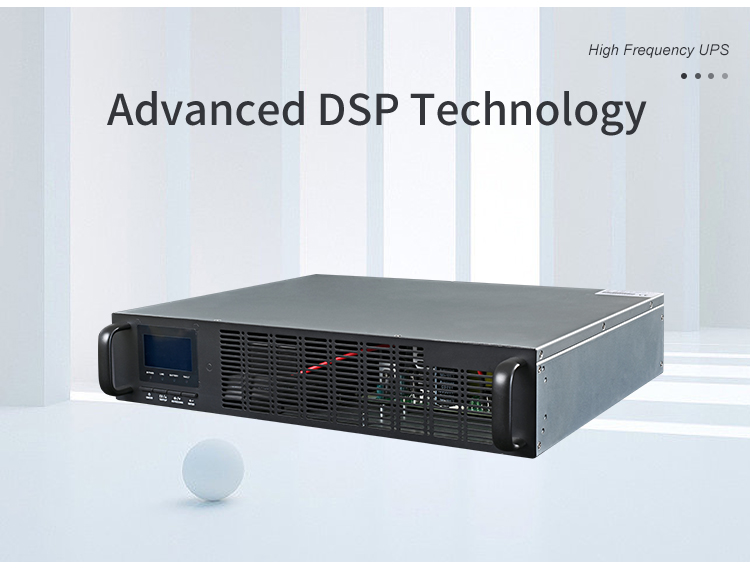

DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion, supply the load with perfect sine wave AC power supply.

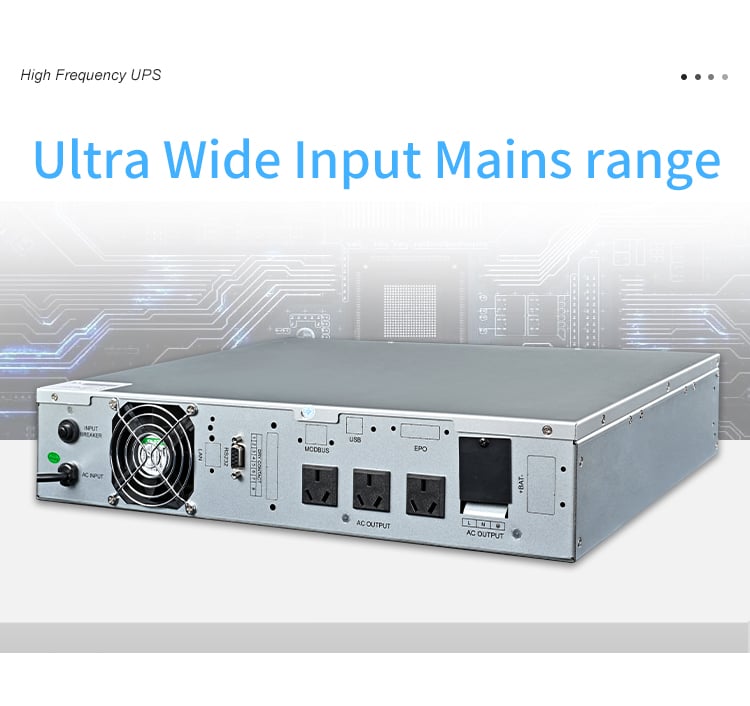

Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 60V~145V, 40~70Hz, dramatically reduce battery discharge, prolong battery life.

Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage, perfectly match all kind of application.

Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset, provide stable and clean power supply to the user equipment.

High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution, save energy expense for customer.

Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating, avoid dust accumulation, improve resistant to corrosion.

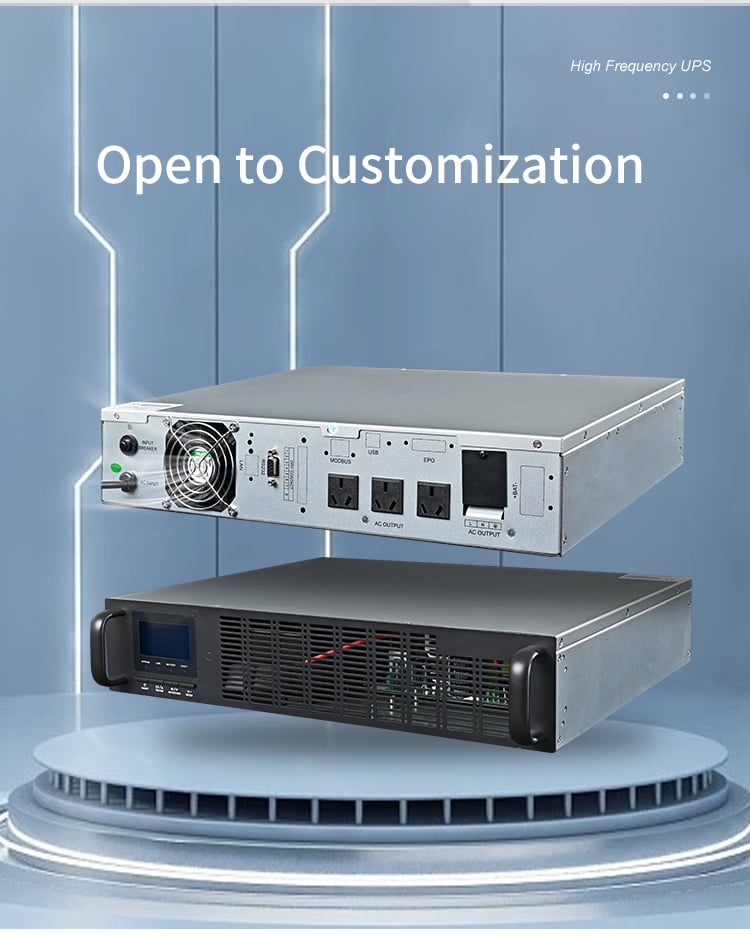

Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system.

Specification

Model

U11-C1K

U11-C2K

U11-C3K

Capacity

VA/W

1KVA

2KVA

3KVA

Topology

Double Conversion Online UPS

Phase

Single Phase Input Single Phase Output

AC Mains Input

Wiring

1 Phase 3 Wires - L/N+PE

Rated Voltage

110/220V AC

Frequency Range

40Hz-70Hz

Input Power Factor

≥0.99

AC Output

Wiring

1 Phase, L/N+PE

Output Voltage

110/220V AC

Waveform

Pure Sine Wave

Distortion - THDV%

<2%(linear load="">

<7%(none-linear load="">

Over load capability

1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load

Efficiency

AC/AC Mode

89%

DC/AC Mode

87%

HMI

LCD DISPLAY

Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status

Standards Communication Interface

1. RS232 PORT

Optional Extension Card

2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software, Support Server / NAS shutdown 3. CMC MODBUS Card 4. USB Card Relay Card - Needs assembly according to order request before shipping

Operating Environment Endurance

Temperature range

-10~50oC

Relative Humidity

0-98% - Non-condensing

Acoustics Noise

<55db>

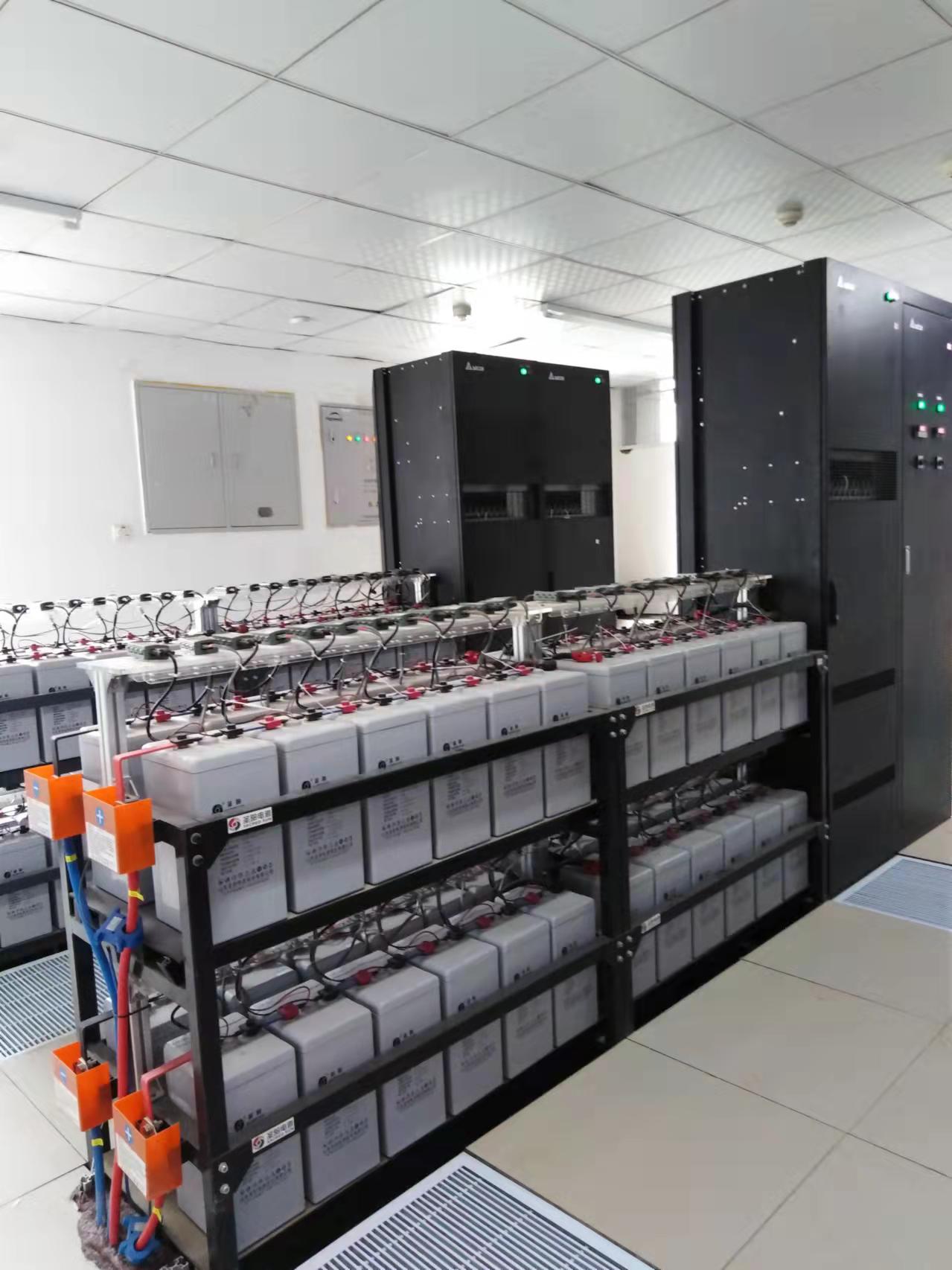

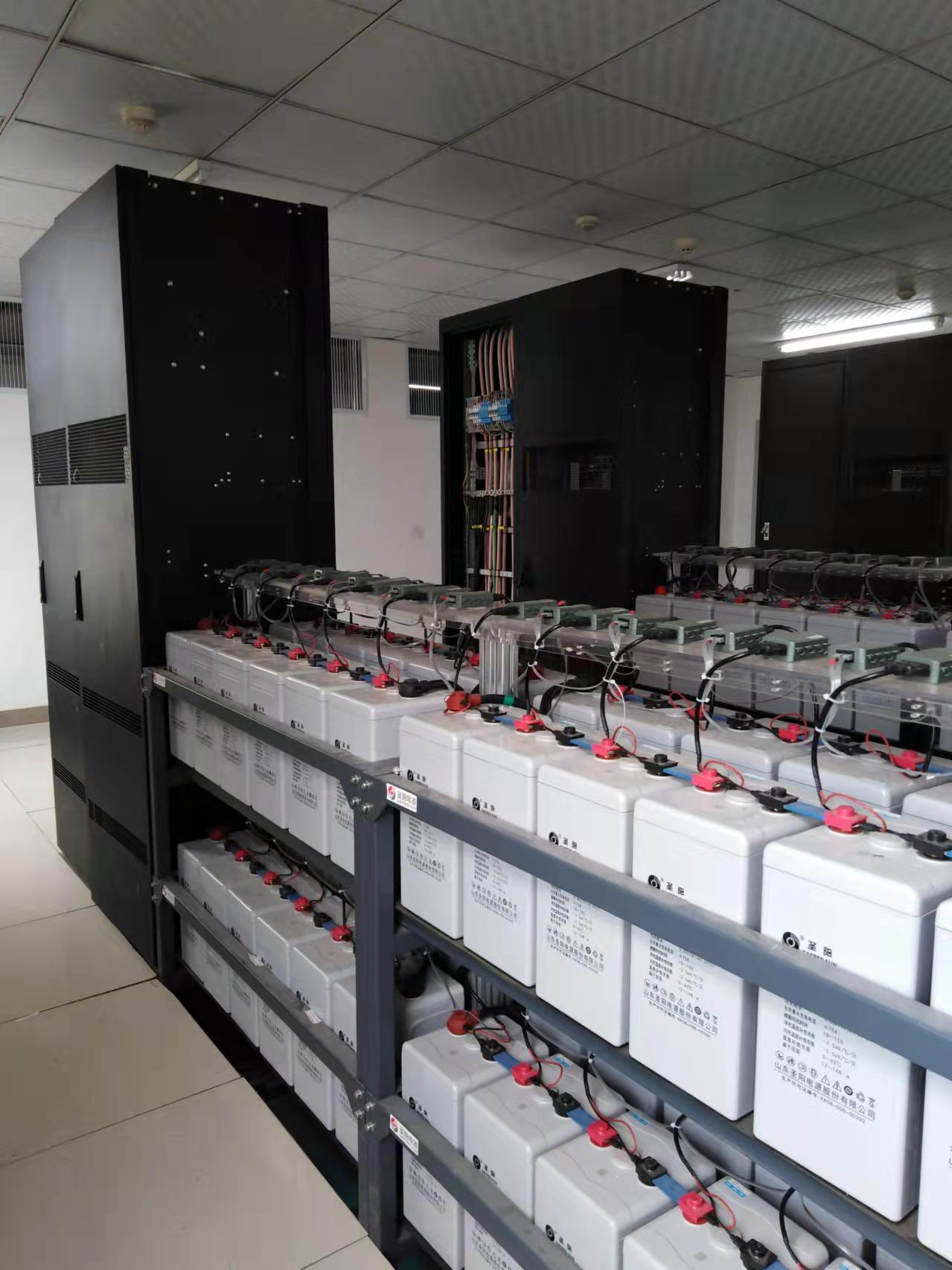

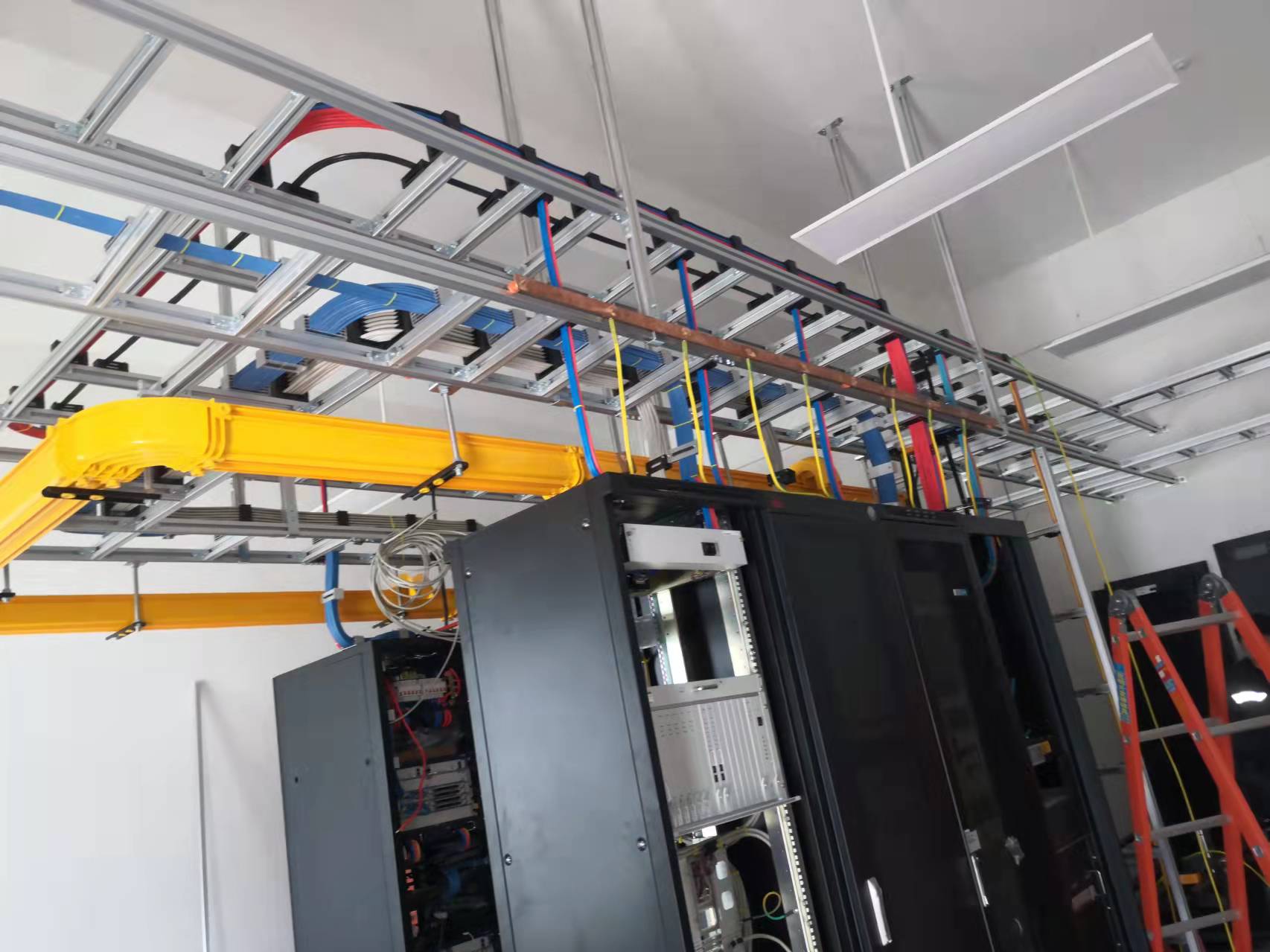

Weitu Hongda has done many projects, so we have rich experience in installation, we can provide all-round support, the following are the pictures of the projects we has done:

No. 1:Mechanical and electrical project of Chongqing Dali-Nairobi Expressway

The Dali-Nairobi Expressway Project is a key project of the "three-year action plan" of Chongqing's transportation construction. Weitu Hongda is responsible for the layout of electrical equipment along the line.

The electromechanical system of expressway is distributed along the line and at many points such as toll stations/service areas/tunnels. It is greatly affected by dust/moisture/vibration/impact and high temperature/severe cold and bad weather, which is easy to cause equipment failure. Chongqing is mountainous, and some equipment needs to be installed in mountainous areas. Equipment with outstanding performance indicators is required to reduce maintenance times.

WeituHongda has met the technical requirements of the expressway project and provided stable and reliable power communication guarantee for the project through multi-dimensional comprehensive power communication system solutions.

No.2:Integration of power equipment for the "the Belt and Road" of China Laos Railway

The China Laos Railway starts from Kunming, Yunnan Province, China in the north and ends at Vientiane, the capital of Laos in the south. The whole line adopts Chinese technical standards and consists of Kunyu Section, Yumo Section and Boten Section. The mileage of the line is 400 km, the proportion of bridges and tunnels is 62.6%, and the design speed is 160 km/h. Usually, the travel time from Vientiane to Boten is only 3 hours.



Multinational railways are faced with changeable outdoor environment, and infrastructure plants have higher requirements for stability, durability and reliability of electricity.



The comprehensive power communication system solution has met the technical requirements of the high-speed railway project, and has been highly recognized by customers both in terms of technology and practical application.

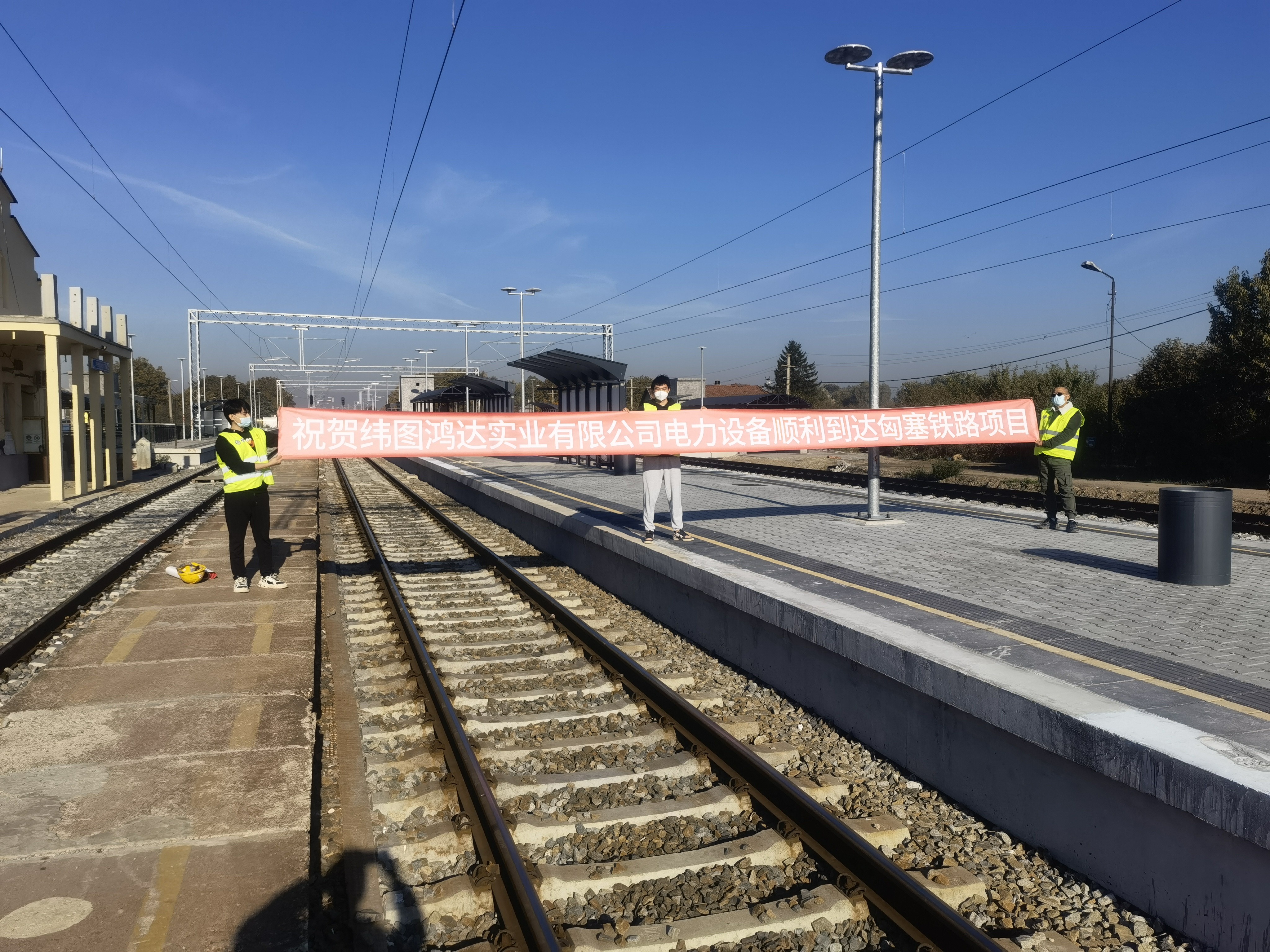

No.3:Integration of power equipment for the "the Belt and Road" of Hungary Serbia Railway

Hunish-Serbia Railway is the flagship project of cooperation between China and Central and Eastern European countries. WeituHongda provides power system equipment integration for the railway and provides stable and reliable power supply in the complex transnational power environment.



Multinational railways are faced with changeable outdoor environment, and infrastructure projects require higher stability, durability and reliability of electricity.

With rich project experience, WeituHongda provides online intelligent and fully digital control UPS - WTHD power frequency online UPS, which highly matches the important loads in the project with high adaptability, high reliability and strong protection, and can ensure that the equipment has a continuous and stable power supply even in extreme weather conditions.

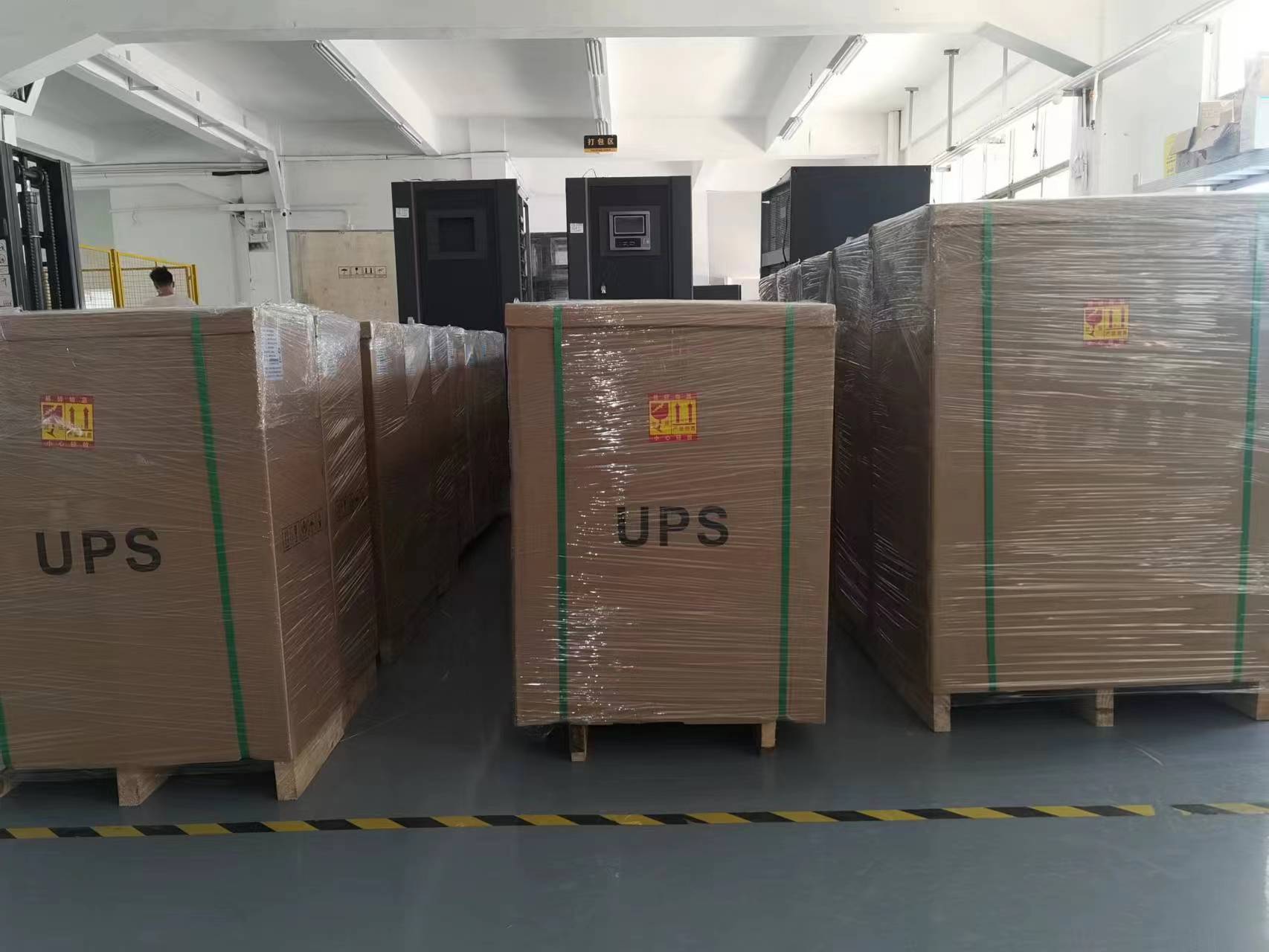

Packing & Delivery
