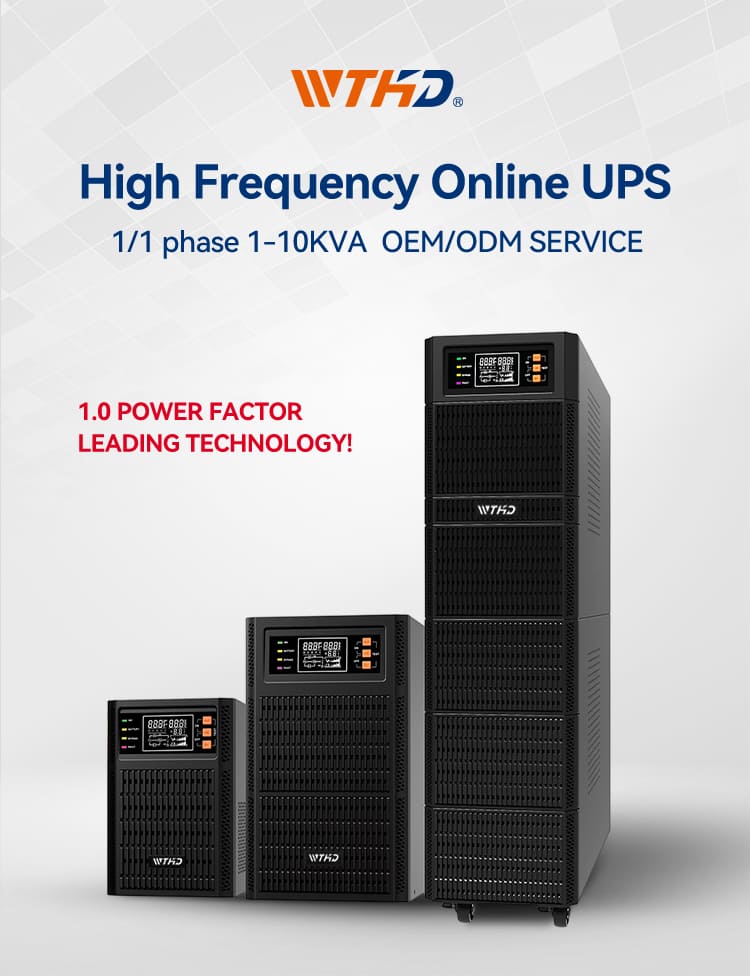

3kva 3000w Online Ups 3kw Home Lcd Display 110vac 220vac High Frequency Online Ups for External Battery

Introducing, the WTHD’s 3kva 3000w Online Ups! This high-quality ups is the perfect solution for keeping your home electronics running smoothly and efficiently. With a power output of 3kw, this ups can handle all of your electronic devices with ease.

The WTHD’s Online Ups features a convenient LCD display that allows you to easily monitor the ups's status and settings. This ups is equipped with both 110vac and 220vac input/output voltage options, giving you the flexibility to power a wide range of devices.

Designed with a high frequency online ups technology, the WTHD Online Ups provides reliable power protection for your home electronics. Whether you're watching TV, working on your computer, or charging your phone, this ups will ensure that your devices are protected from power surges and outages.

One of the standout features of the WTHD Online Ups is its compatibility with external batteries. This allows you to extend the runtime of the ups if needed, giving you peace of mind knowing that your devices will stay powered on during extended outages.

The compact and sleek design of the WTHD’s Online Ups makes it a stylish addition to any home or office. With its durable construction and advanced technology, this ups is built to last and provide reliable power protection for years to come.

The WTHD’S 3kva 3000w Online Ups is a top-of-the-line ups that offers high performance and reliability for all of your home electronics. With its LCD display, dual voltage options, and compatibility with external batteries, this ups is the perfect choice for ensuring that your devices stay powered on and protected. Invest in the WTHD’S Online Ups today and enjoy peace of mind knowing that your electronics are in good hands

3kva 3000w Online Ups 3kw Home Lcd Display 110vac 220vac High Frequency Online Ups For External Battery

Model WTHD-U11

C1K - S

C2K - S

C3K - S

C6K - S

C10K - S

Rated power (KVA/KW)

1KVA/1000W

2KVA/2000W

3KVA/3000W

6KVA/6000W

10KVA/10000W

Main Input

Phase

Single-phase  - 1L+N+PE

Input Voltage (Vac)

110/120/127/220/230/240

Voltage range

High voltage version : 85~300VAC ±5VAC Low voltage version : 55-145VAC ±3VAC

Frequency range

44Hz~56Hz or 54Hz~66Hz

Bypass voltage

High voltage version : 115~285VAC× 1±3% Low voltage version : 80~140VAC× 1±3%

Power factor

≥0.99

Output

Phase

Single-phase - 1L+N+PE

Rated voltage

High voltage version :220/230/240VAC±2% Low voltage version :110/120/127VAC±2%

Output frequency

50/60Hz

Power Factor

1

THDV%

Sine wave THD<2%> Sine wave THD<4%>

Overload capacity

（Line Mode）：105～125% 1Min，125～150% 30 s, >150% 0.5ms （Battery Mode）：105～125% 1Min，125～150% 30 s, >150% 0.5ms

Efficiency

Mains mode

93%

94%

96%

battery mode

90%

91%

95%

Battery input

Battery voltage

24V/36V

48V/72V

72V/96V

192V/240V(option)

192V/240V - option

Battery capacity ×quantity

12V/7AH ×2pcs/ External battery

12V/7AH ×4pcs/ External battery

12V/7AH ×6pcs/ External battery

12V/7AH x16/20pcs/ External battery

12V/7AH x16/20pcs/ External battery

Charging current

Standard machine (battery built-in): 1A

Long-term machine (external battery): 1~12A

Communication and monitoring functions

RS232, Network monitoring card, dry contact, MODBUS monitoring card，optional

Certification

EN/IEC 61000, EN/IEC 62040, GB/T4943. YD/T1095, TLC

Shenzhen Weitu Hongda Industrial Co., Ltd. was established in 2015 with a registered capital of Capital 51 million. It is a national key high-tech enterprise and a specialized, Special new enterprise. We focus on new energy customization. Our products cover high-frequency UPS, industrial UPS, module UPS, EPS power supply, voltage regulator, solar inverter, etc. Outdoor energy storage, etc. Our products are widely used in data centers, medical Nursing, transportation and railways, the petrochemical industry, and other fields
We can provide OEM and ODM customization services according to customers' requirements
We look forward to your cooperation. Thank you

Q1: Are you a factory or a trading company?

A: We are a manufacturing factory, we focus on OEM and ODM.

Q2: What kind of certification do you have?
ISO9000, ISO14001, CE, ROHS, Thiel, etc.

Q3: Product coverage and industries:
Industrial online UPS, high frequency online UPS,
Modular UPS 1kVA ~800kVA UPS for any industrial and application.

Q4: About the battery.
Provide one-stop battery solutions; lead-acid and lithium batteries are available.

Q5: Do you accept OEM/ODM?
Yes, the entire series supports ODM/OEM, and the minimum order quantity is flexible.

Q6: About warranty.
The warranty period is 1 to 3 years, and the battery warranty is 1 to 3 years; differentiate between different products and models.

Q7: Can I participate in bidding projects?
We support large-scale project bidding, authorized manufacturing, project design and more.

Q8: Are there overseas branches?
